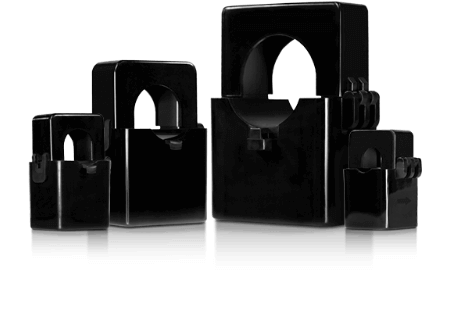

Compact Hinged Split-Core Current Transformer (CT)

Hinged split-core AC current transformer with 0.5% high accuracy measurements. Four sizes are available, each with a safe 333mV output. Use on services from 5A-630A (depending on model). The compact form factor is superior in crowded panels & hinged split-core design promotes fast installation:

  • High accuracy: 0.5% from 10%-120% of rated current
  • Current input range: 5A-630A AC (depending on model)
  • Safe, 333mV output
  • Hinged split-core design for quick installation
  • Engineered for superior utility in crowded electrical panels
  • UL Recognized

$22.00 – $47.00

Why choose a hinged split-core current transformer?

Preferred for their convenient, compact form factor, hinged split-core current transformers offer an excellent balance between function and accuracy. Ideal for high-density, retrofit applications hinged split-core current transformers easily clip around conductors and snap together for precision current measurement in crowded breaker panels. The installer-friendly design ensures rapid installation in any environment.

Window Size

0.4", 0.63", 1", 1.38"
Amp Rating

5A Input with 333mV Output, 20A Input with 333mV Output, 30A Input with 333mV Output, 40A Input with 333mV Output, 50A Input with 333mV Output, 60A Input with 333mV Output, 50A Input with 333mV Output, 100A Input with 333mV Output, 150A Input with 333mV Output, 120A Input with 333mV Output, 200A Input with 333mV Output, 250A Input with 333mV Output, 400A Input with 333mV Output, 600A Input with 333mV Output

Datasheet

Download
