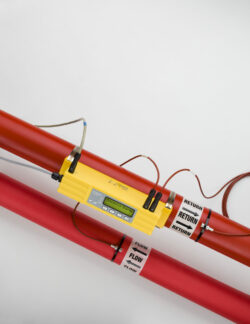

U1000HM Clamp On BTU Meter


The U1000MKII-HM is a “Best Value” Clamp-on Ultrasonic alternative to traditional inline energy meters, for energy management and billing applications in domestic and commercial, district, or shared heating or cooling systems. Offering significant installation cost savings and dry maintenance benefits over traditional inline products.

Key Features & Benefits of the clamp on BTU Energy Meter:

  • Pipe range 2 options, fully adjustable for 0.75-4″ Pipe and 6″ Pipe
  • Optional Modbus RTU slave, RS485 serial
  • Cross-correlation flow measurement system for accuracy
  • 1-Mhz transducers are more powerful to get through poor/old thick wall pipes and larger pipework
  • Water and Water/Glycol options
  • Simple to install: connect power and enter the pipe inside diameter, adjust the sensors, and clamp-on the pipe.  There are no special skills or tools required.  Best of all…No downtime or plumber!
  • A clamp-on non-invasive alternative to traditional in-line meter installation, plus dry servicing, allowing for minimum downtime and maximum availability.
  • LCD with backlight – install & service information.
  • Integrated pulse output – aM&T & BEM’s compatible with Modbus.



Pipe Mount Manual


Wall Mount Manual
